New shack (antennas) page 1 of 2


As is known, the Netherlands is a relatively small country with almost 17 million inhabitants, who usually live close together in the larger cities. Result: small surfaces and a problem to place an HF antenna in it that works satisfactorily, including when placed in my backyard. It was my wish to realize a multiband antenna optimally adapts to the 10 to 80 meter band. With the help of PA0TW I managed to stretch out a half a lambda (80 m) long center fed dipole. Making the animation and photos Hopefully it is clear how things worked. NB. Everything about the reception of real-time images with this QFH quadrifilar 137 mhz satellite antenna can be found under the button "weather satellites" on my main page.

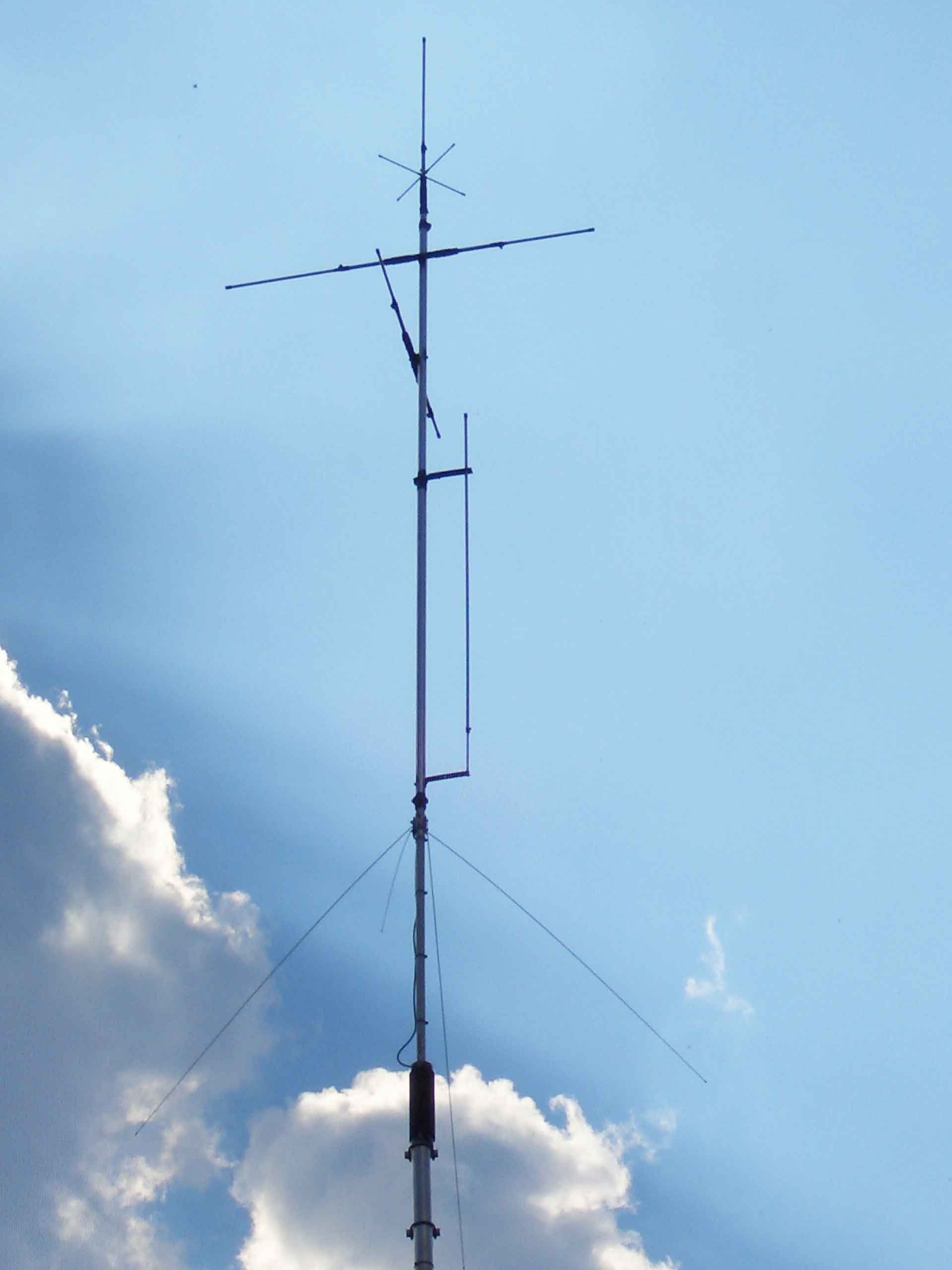

MA6V Cushcraft 6-band HF

Satellite antenna

Symmetrical feeded dipole, 3.5Mhz, lined up in a small environment
